CITROEN

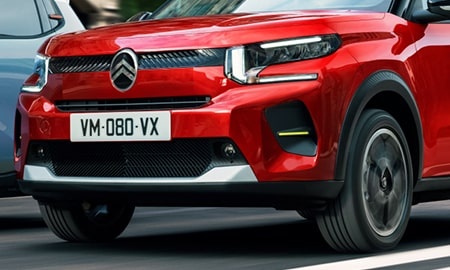

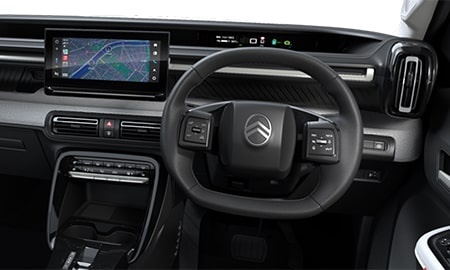

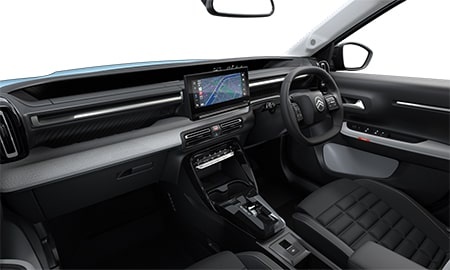

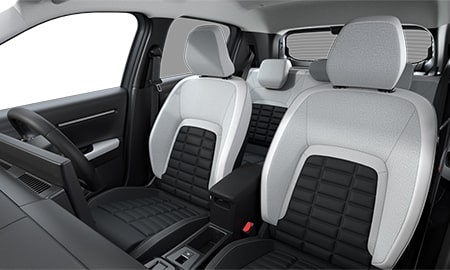

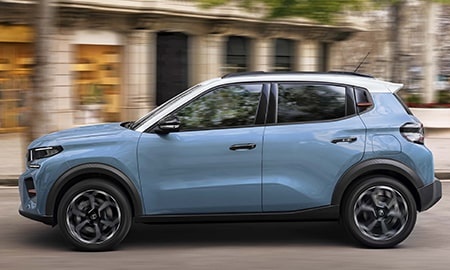

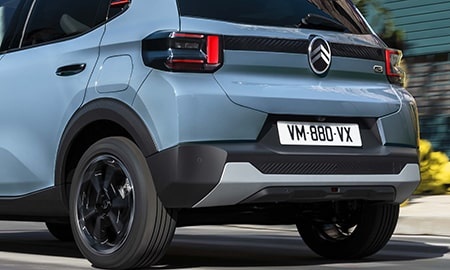

CITROEN C3 MAX HYBRID
General Specification
People who viewed this also viewed
Model3AA-C2HN09
Dimension4015×1755×1590mm
Wheelbase2540mm
Tread front/rear1500/1520mm
Dimension(Interior)-×-×-mm
Weight1270kg
Body TypeHatch
Doors5
Riding Capacity5
Specifications
Engine/Fuel
| Engine Model | - |
|---|---|
| Maximum Power | 101ps(74kW)/5500rpm |
| Displacement | 1199cc |
| Compression Ratio | 11.5 |
| Fuel Supply Equipment | - |
| Fuel Type | - |
| Cylinders | - |
| Maximum Torque | 20.9kg・m(205N・m)/1750rpm |
| Bore×Stroke | 75.0mm×90.5mm |
| Charger | - |
| Fuel Tank Equipment | 44L |
Suspension
| Steering System | - |
|---|---|
| Suspension System(front) | - |
| Breaking System(front) | - |
| Tires Size(front) | 205/50 R17 |
| Minimum Turning Radius | -m |
| Suspension System(rear) | - |
| Breaking System(rear) | - |
| Tires Size(rear) | 205/50 R17 |
Drivetrain
| Driving Wheel | FF |
|---|---|
| Transmission | 6AT |
| LSD | |
| Gear_ratio |
1st Gear15.898 2nd Gear9.671 3rd Gear6.101 4th Gear4.640 5th Gear3.440 6th Gear2.610 Reverse14.205 |
| Final Drive Gear Ratio | 1.000 |
