ALFA ROMEO
ALFA ROMEO JUNIOR IBRIDA CORE
General Specification
People who viewed this also viewed
Model3AA-FH1ARM
Dimension4195×1780×1585mm
Wheelbase2560mm
Tread front/rear1530/1535mm
Dimension(Interior)-×-×-mm
Weight1330kg
Body TypeSUV
Doors5
Riding Capacity5
Specifications
Engine/Fuel
| Engine Model | HN09-ZA03 |
|---|---|
| Maximum Power | 136ps(100kW)/5500rpm |
| Displacement | 1199cc |
| Compression Ratio | - |
| Fuel Supply Equipment | - |
| Fuel Type | - |
| Cylinders | - |
| Maximum Torque | 23.5kg・m(230N・m)/1750rpm |
| Bore×Stroke | 75.0mm×90.5mm |
| Charger | - |
| Fuel Tank Equipment | 44L |
Suspension
| Steering System | - |
|---|---|
| Suspension System(front) | - |
| Breaking System(front) | - |

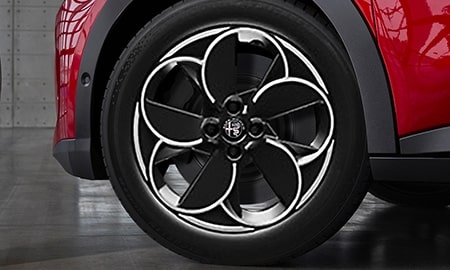

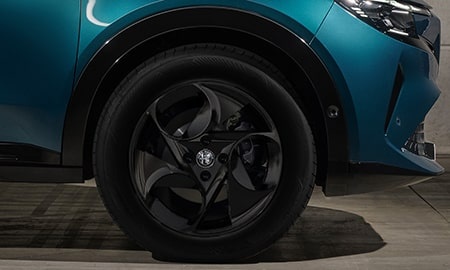

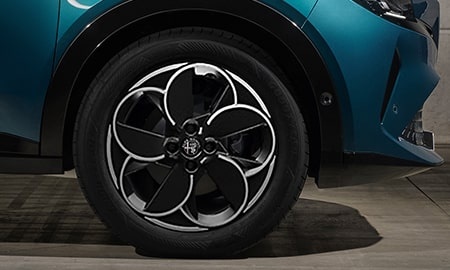

| Tires Size(front) | 215/60R17 |
| Minimum Turning Radius | 5.3m |
| Suspension System(rear) | - |
| Breaking System(rear) | - |
| Tires Size(rear) | 215/60R17 |
Drivetrain
| Driving Wheel | FF |
|---|---|
| Transmission | 6AT |
| LSD | |
| Gear_ratio |
1st Gear17.391 2nd Gear10.571 3rd Gear6.658 4th Gear5.071 5th Gear3.750 6th Gear2.850 Reverse15.528 |
| Final Drive Gear Ratio | 1.000 |
